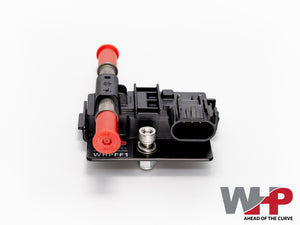

WHP Flex Fuel Sensor Kit

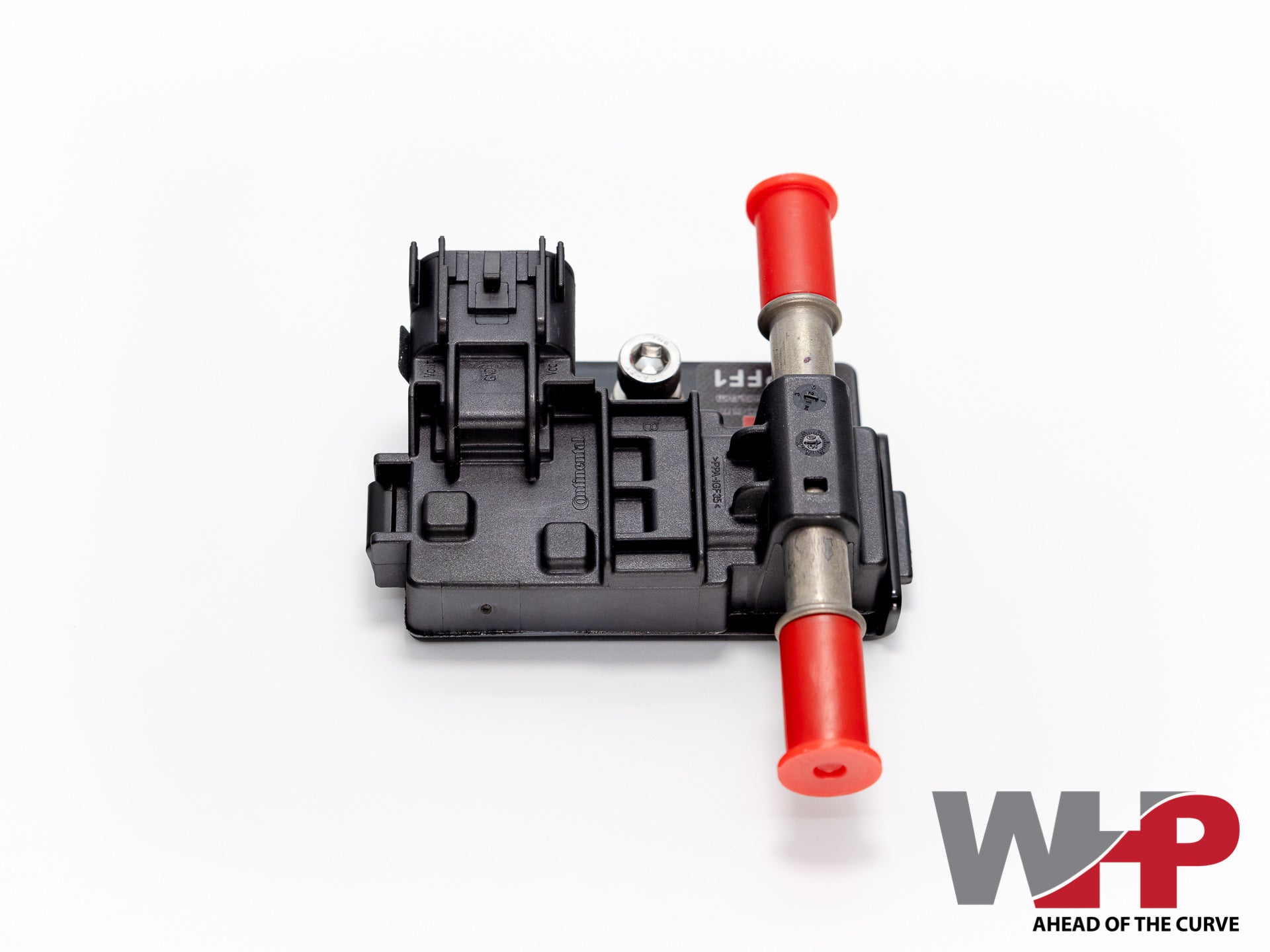

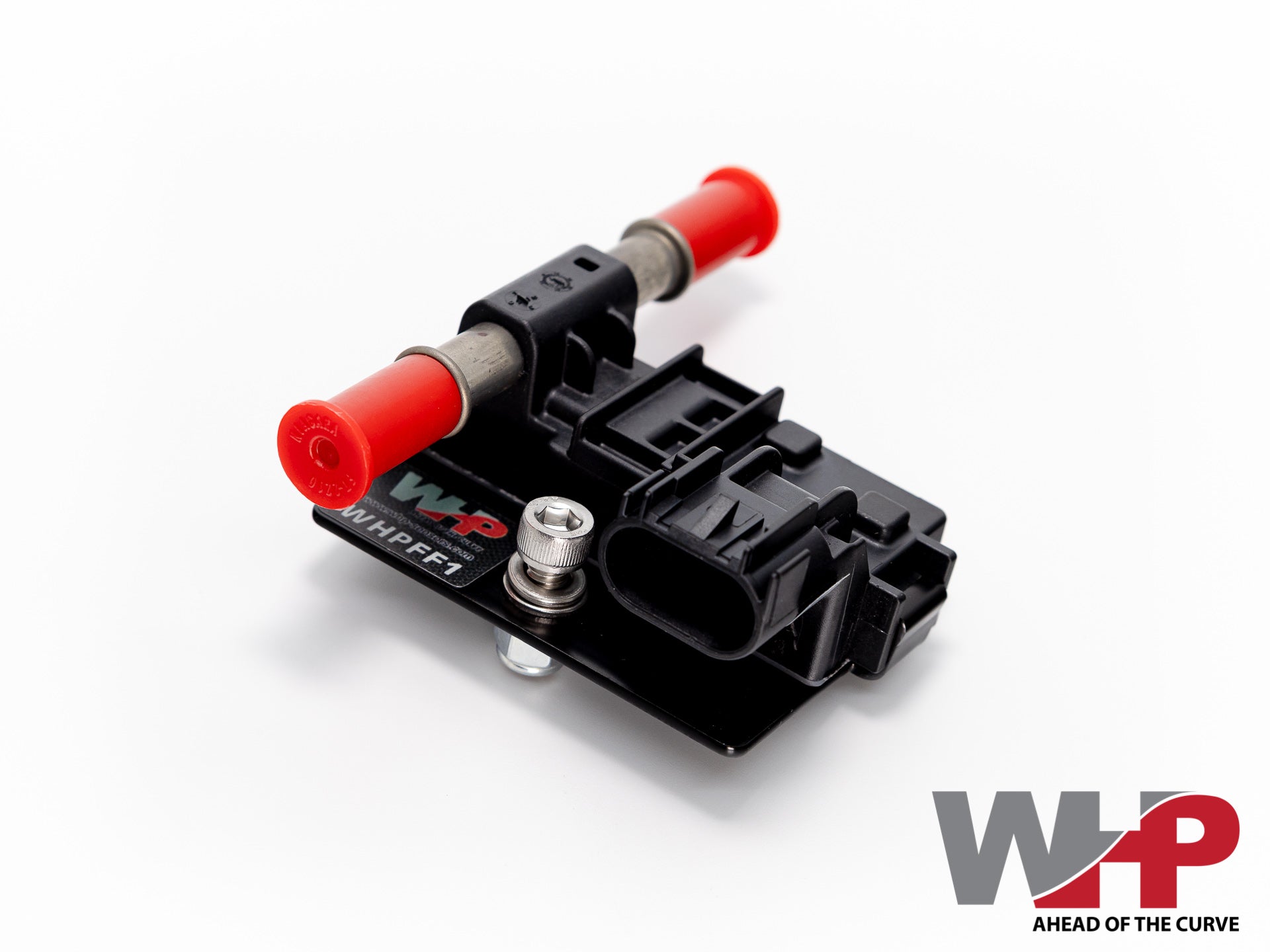

WHP Flex Fuel Sensor Kits are designed for use with aftermarket ECUs capable of reading an ethanol content sensor. The use of a WHP Flex Fuel Sensor with the ECUMaster EMU allows for blending of fuel, ignition, engine start, and boost control tables. WHP Flex Fuel Sensor Kits are built around the most accurate ethanol content sensor on the market, capable of providing the ECU with an ethanol content and fuel temperature reading within a quarter of a second of start-up. Each kit includes the ethanol content sensor, a laser cut, CNC bent, and powder coated mounting bracket, metric mounting hardware, and a connector with 8 foot harness. Installation is straightforward; just install the sensor in the fuel feed or return line and connect three wires to switched 12 volts, chassis ground, and the output signal wire connects to Flex Fuel input on the EMU Black ("cam sync 2" pin on the EMU Classic). Care should be taken not to exceed the maximum flow rate of the sensor of 400 liters per hour, which may cause signal instability. In some applications, a bypass loop will need to be incorporated into the feed or return line to accommodate the ethanol content sensor.
