ECUMaster Wireless Racing Panel Kit

Product image 1ECUMaster Wireless Racing Panel Kit
Product image 2ECUMaster Wireless Racing Panel Kit
Product image 3ECUMaster Wireless Racing Panel Kit

Regular price $475.00

In stock.

Create your own wireless steering wheel switch panel with this new kit from ECUMaster! While ECUMaster does offer a ready to go wireless steering wheel panel in a bespoke carbon fiber housing there is not always a one size fits all solution for everyone. This kit allows you to create your own wireless switch panel with up to 8 switch/button inputs, 4 rotary switch inputs (8 positions), and 2 paddle shift inputs.

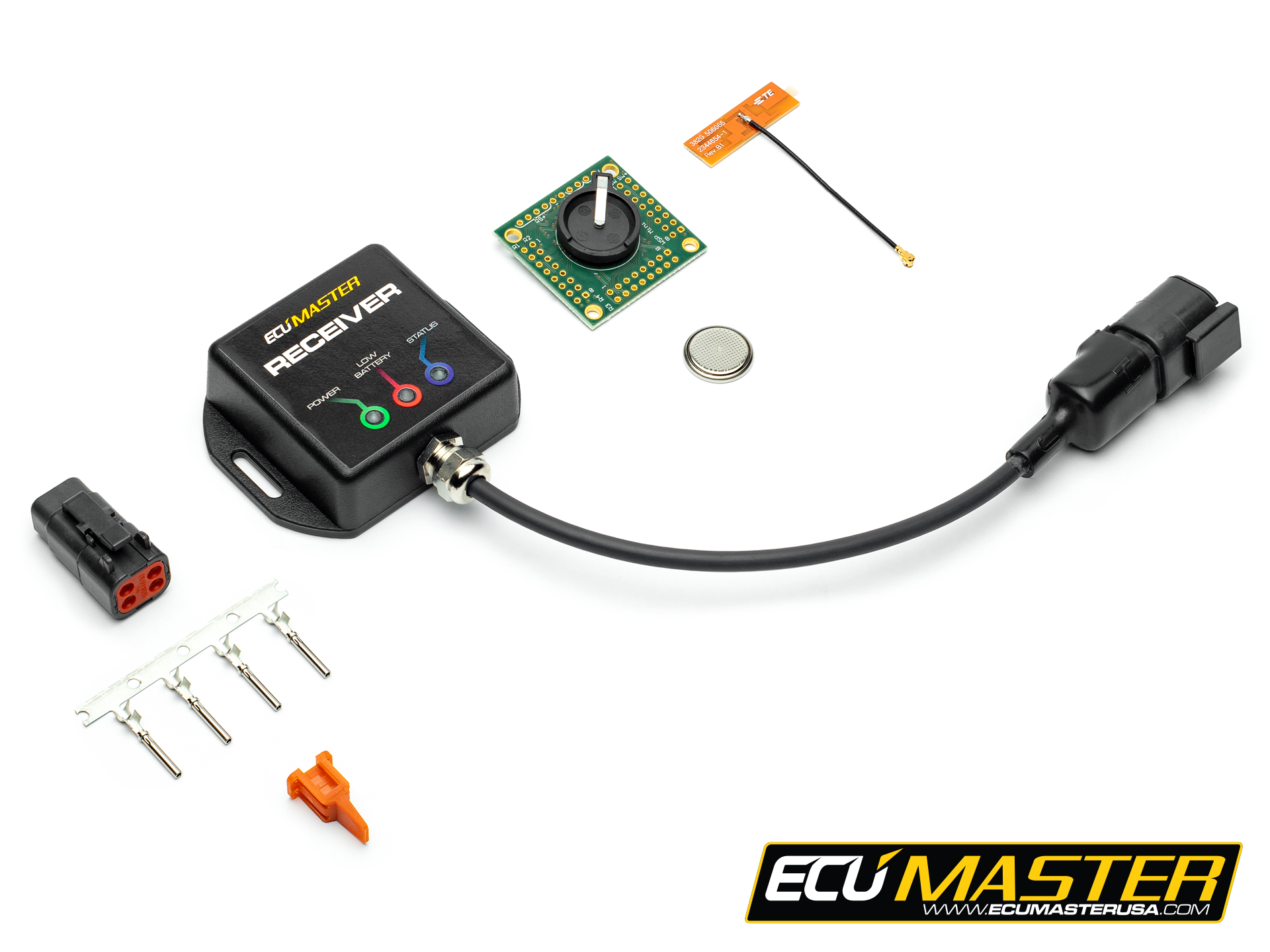

What's in the Box?

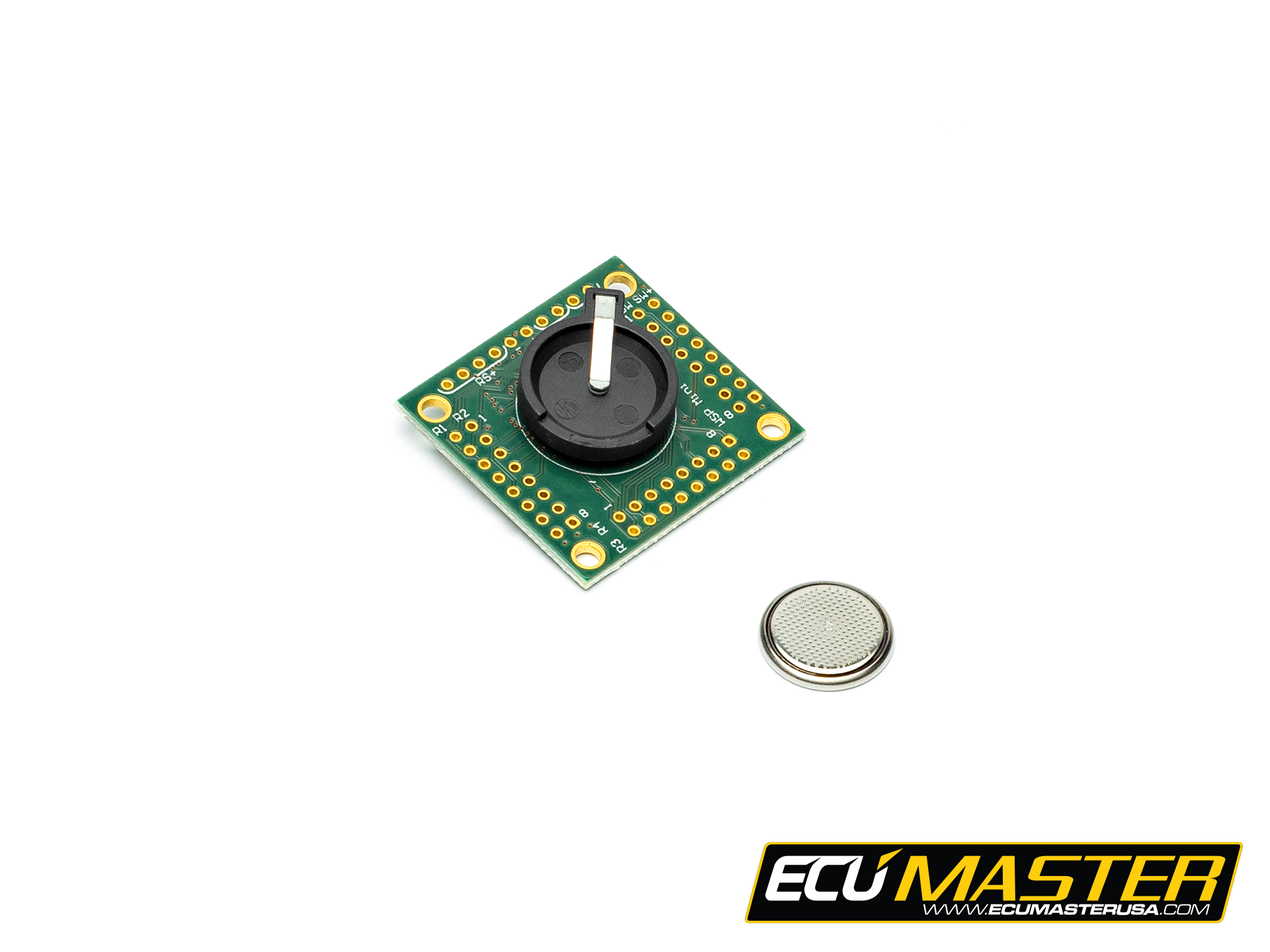

  • Transmitter (PCB)
  • Battery for transmitter
  • Antenna for transmitter
  • RF Receiver
  • RF Receiver mating connector with terminals

RF Steering Wheel Kit specification:

  • Temperature range AECQ GRADE3 (-40°C to +85°C)
  • Battery type CR1620 (included) - Possible to connect external battery pod to extend battery life
  • Wireless communication Radio Frequency
  • Frequency range 2360 MHz to 2500 MHz
  • Estimated battery life 260 days at rest at room temperature or 150,000 switches
  • Weight 10 g

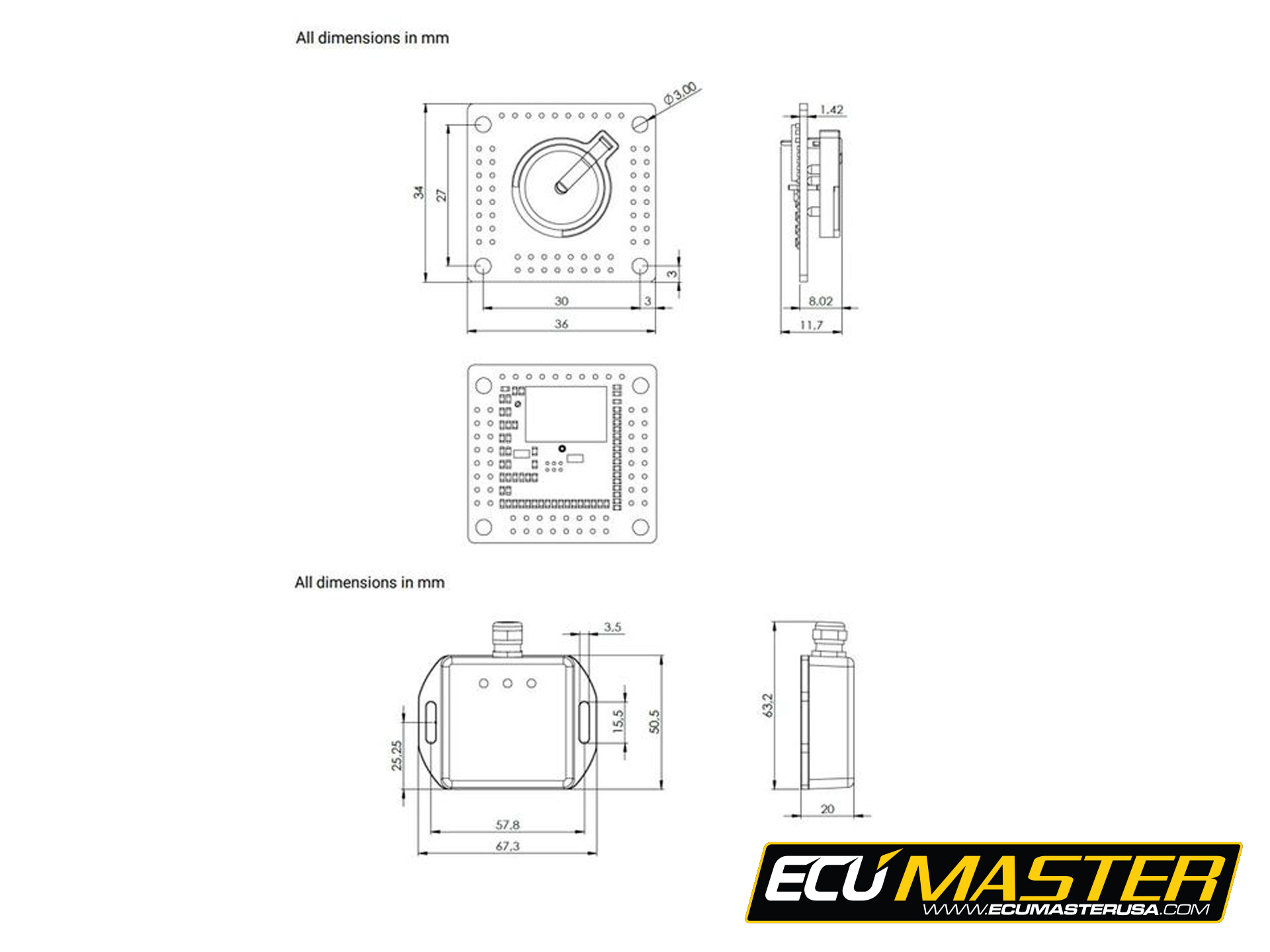

  • Dimensions 36 x 34 x 12 mm
  • Mounting mechanism 4 screws with a diameter of 3 mm
  • Latency Below 20 ms
  • Button inputs 8 with customizable functions (not included)
  • Rotary switch inputs 4 with eight positions and customizable functions (not included)
  • 2 Paddle shift inputs, paddle shifters (not included)
  • Range (line of sight) 100 m at highest power setting
  • Power levels 7
  • Power range from -20 dBm to 4 dBm depending on power level selected

RF Receiver specification:

  • Temperature Range AECQ GRADE3 (-40°C to +85°C)
  • Operating Voltage 6-22 V, immunity to transients according to ISO 7637
  • CAN CAN 2.0 A/B – 125, 250, 500, 1000 kbps
  • Dimensions 68 x 50 x 20 mm
  • Weight 50 g
  • Connector Deutsch DTM04-4P (terminal included)
  • Cable length 20 cm
  • Mounting mechanism 2 x M3 bolts
  • Number of supported RF Steering Wheel Kits Up to 8

Additional Documents:

RF Steering Wheel Kit Manual
