ECUMaster PMU-24 DL

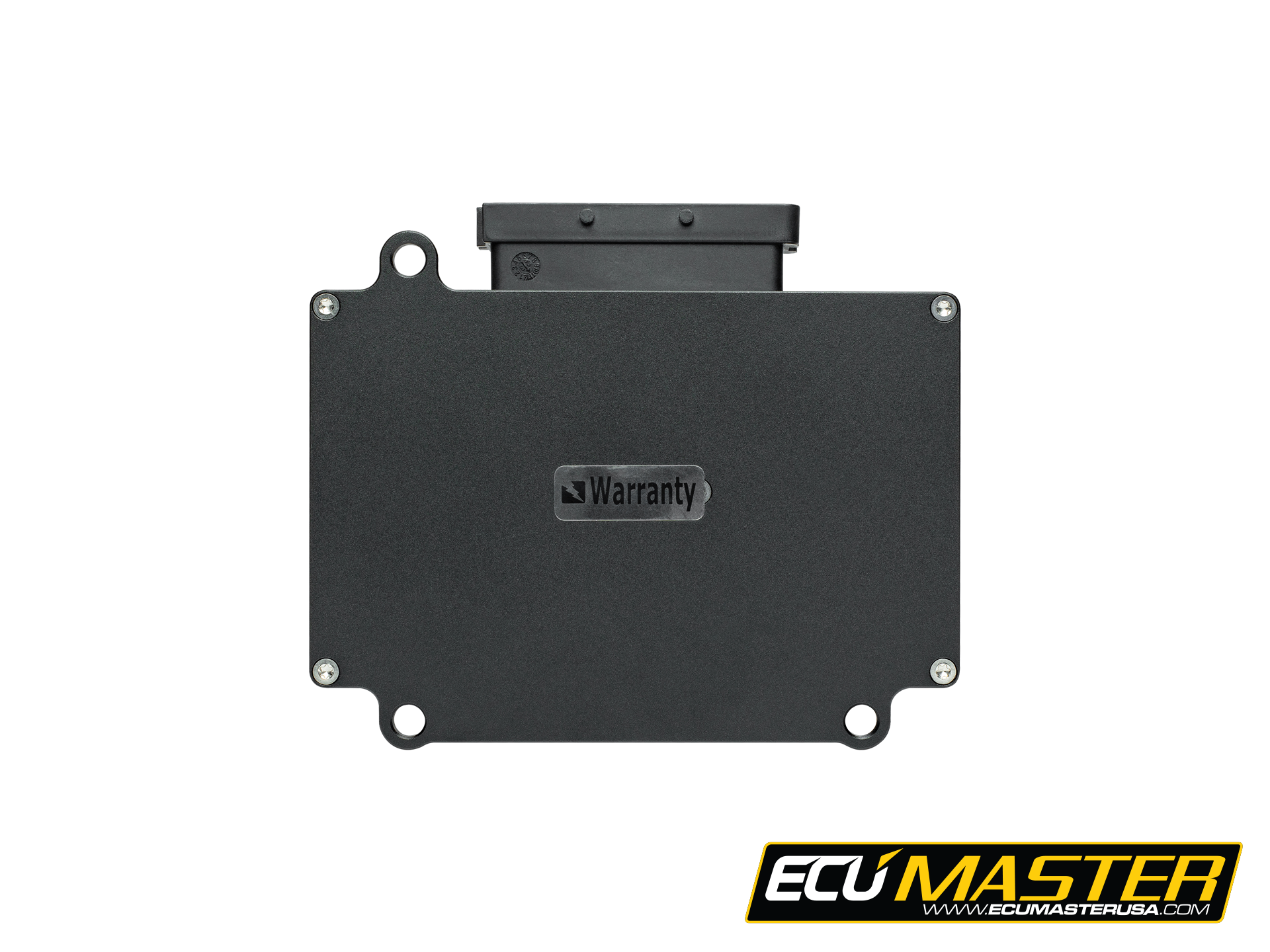

Product image 1ECUMaster PMU-24 DL

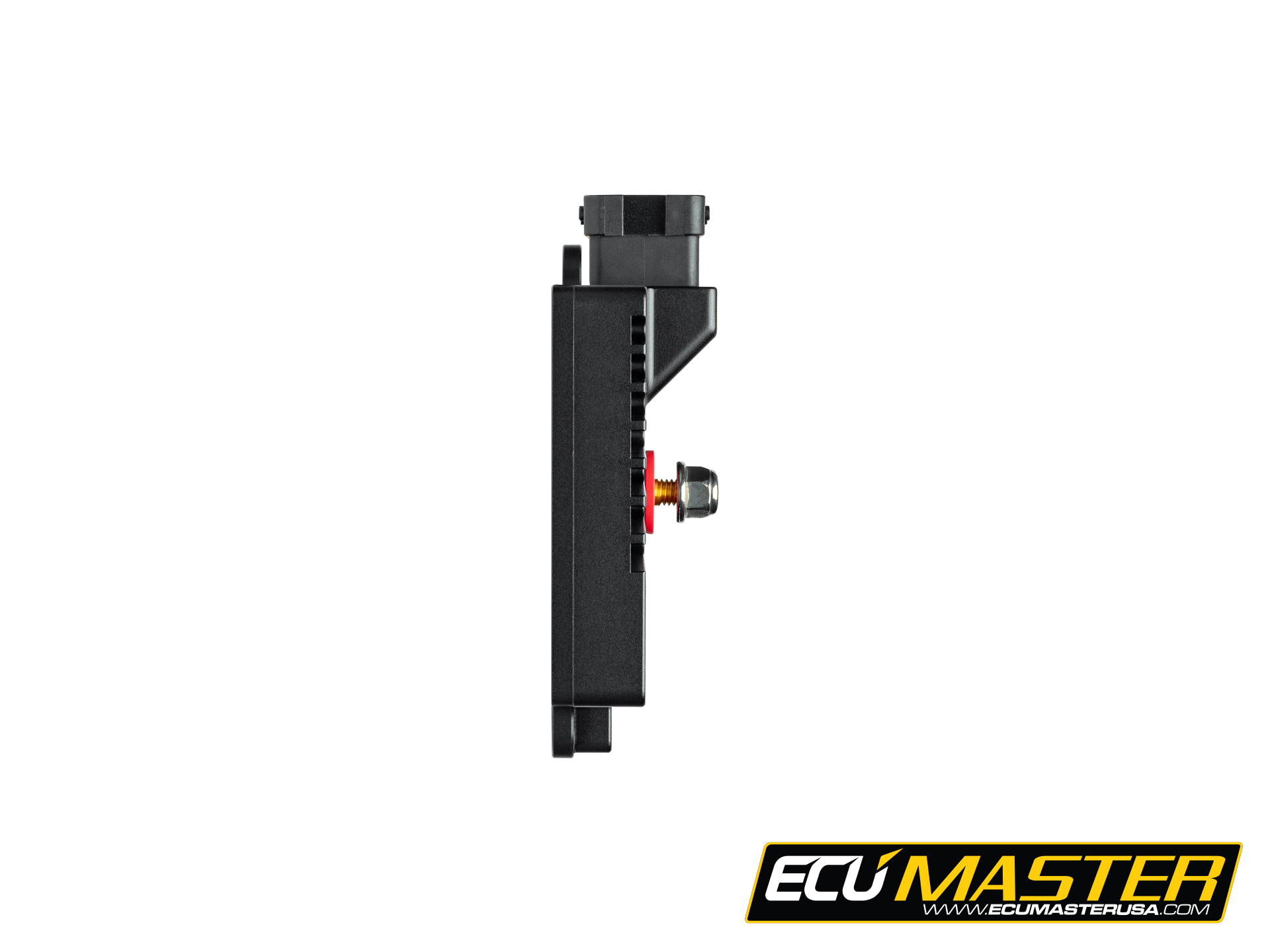

Product image 2ECUMaster PMU-24 DL

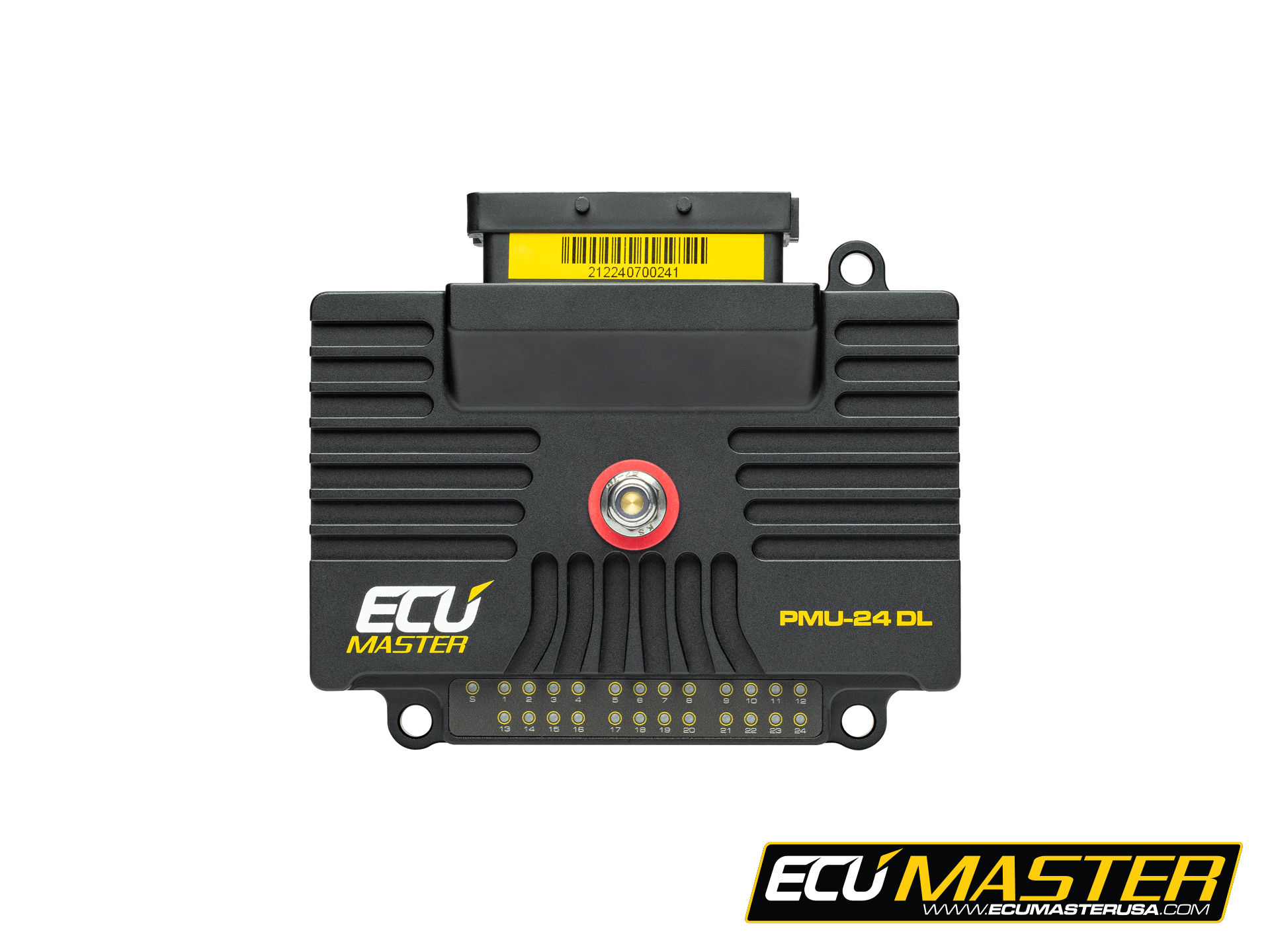

Product image 3ECUMaster PMU-24 DL

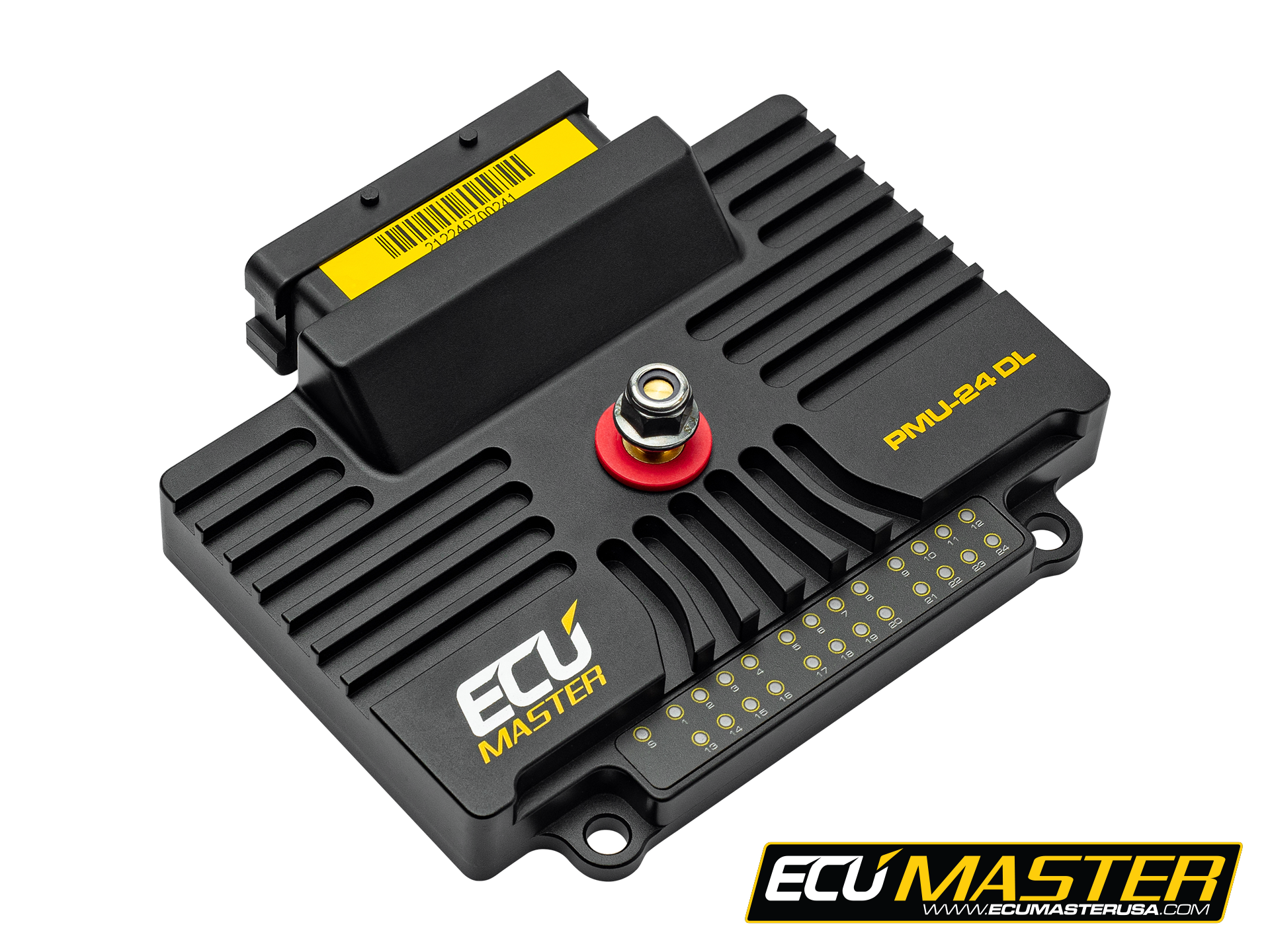

Product image 4ECUMaster PMU-24 DL

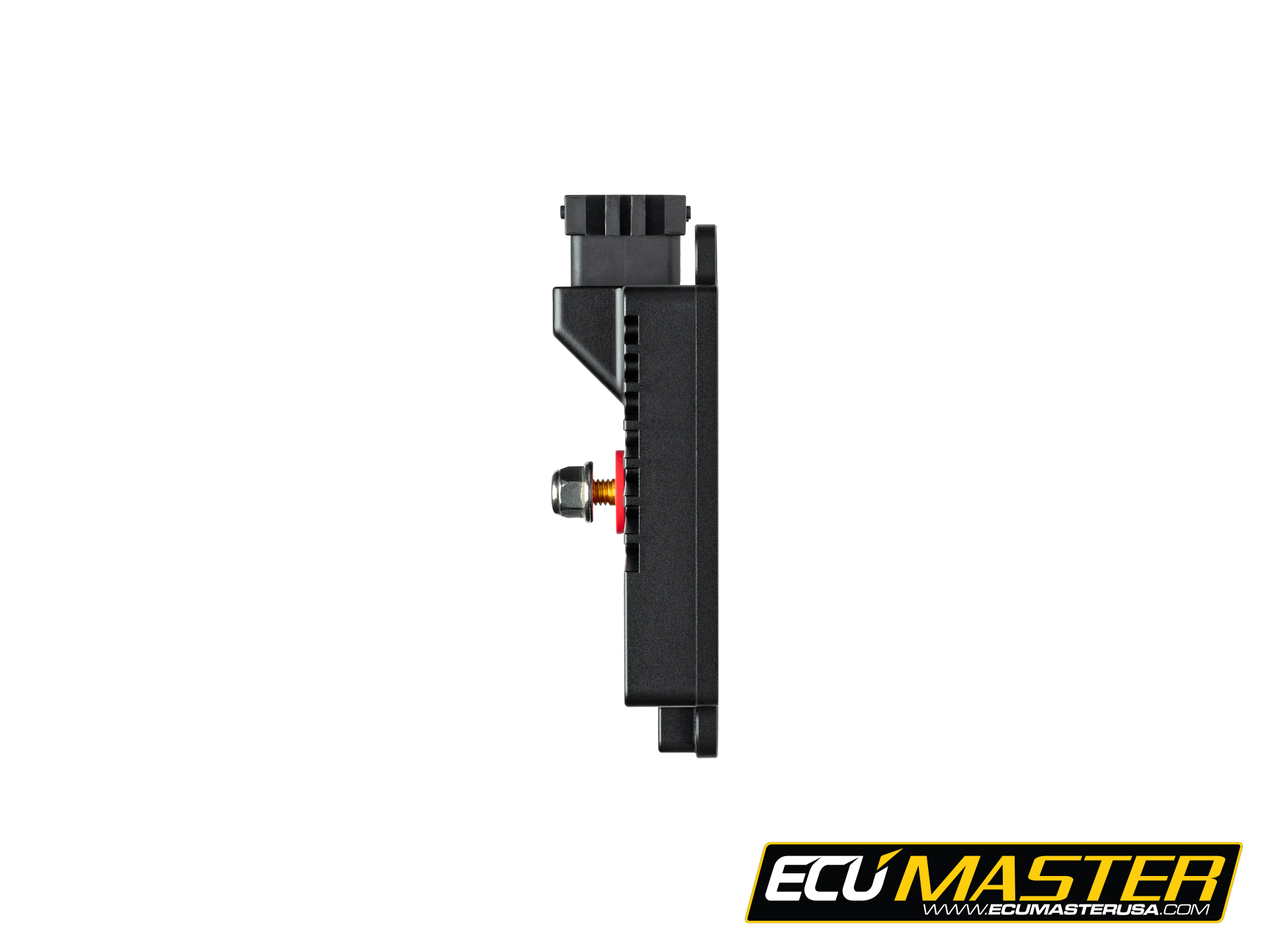

Product image 5ECUMaster PMU-24 DL

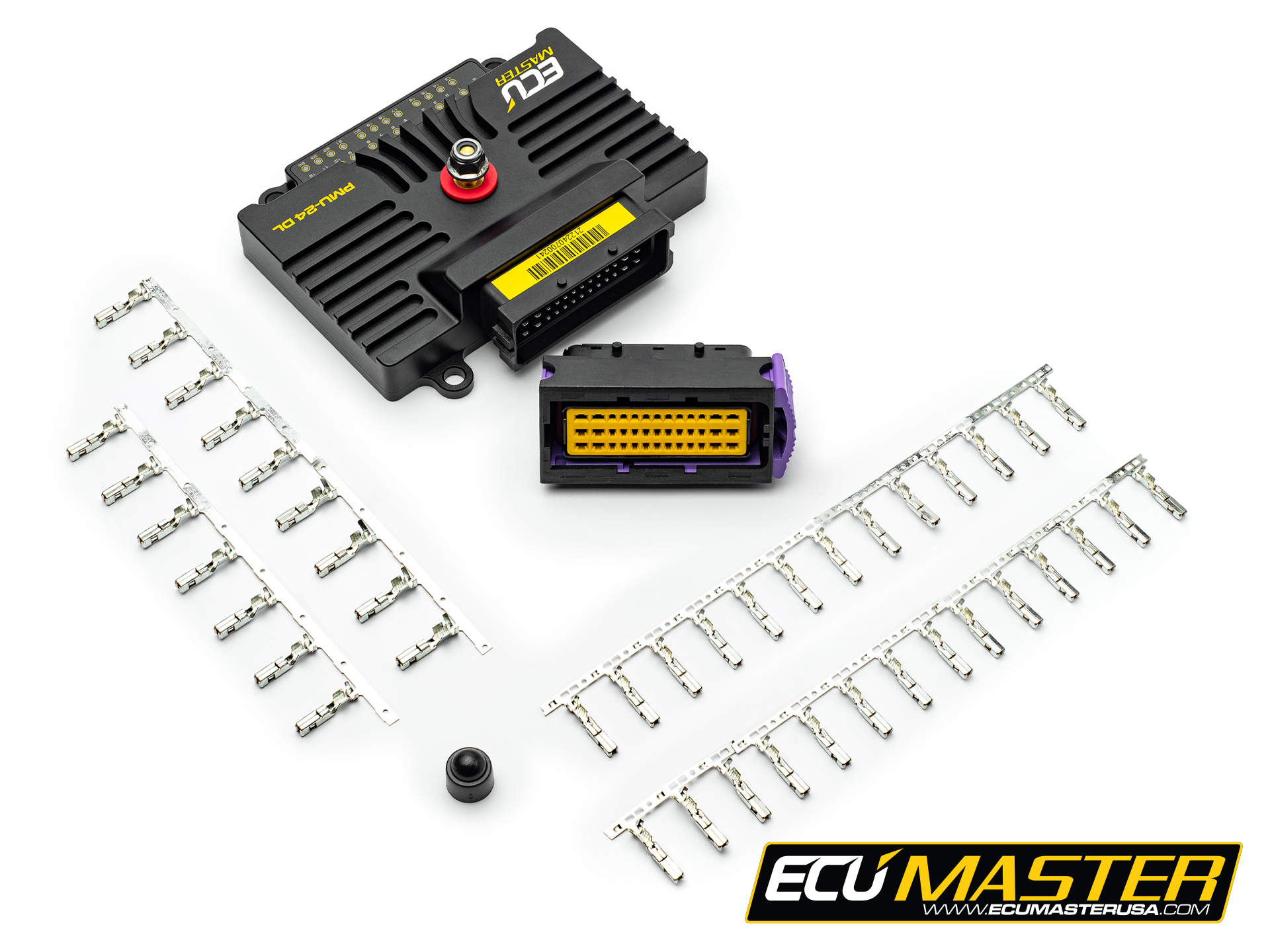

Product image 6ECUMaster PMU-24 DL

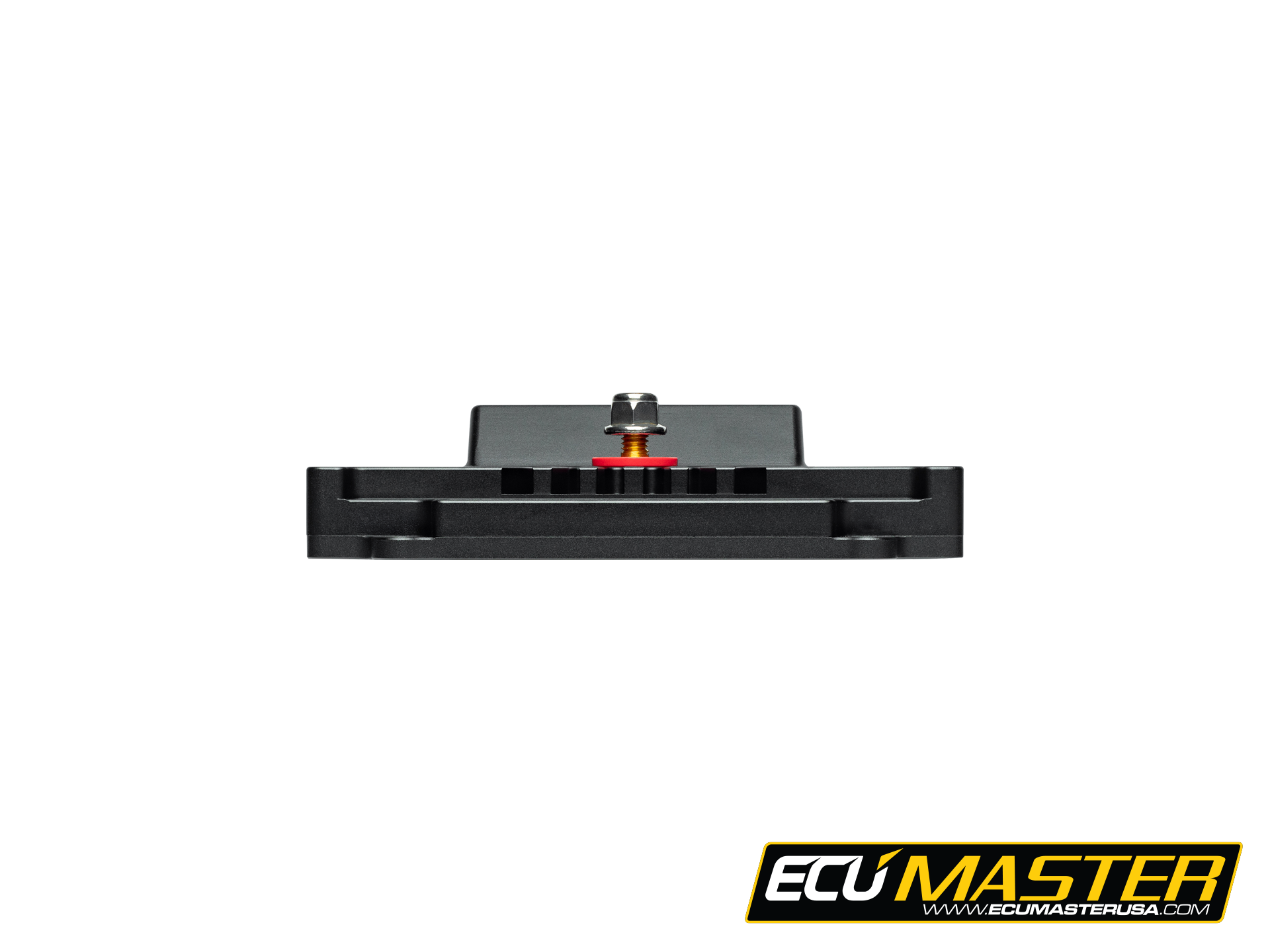

Product image 7ECUMaster PMU-24 DL

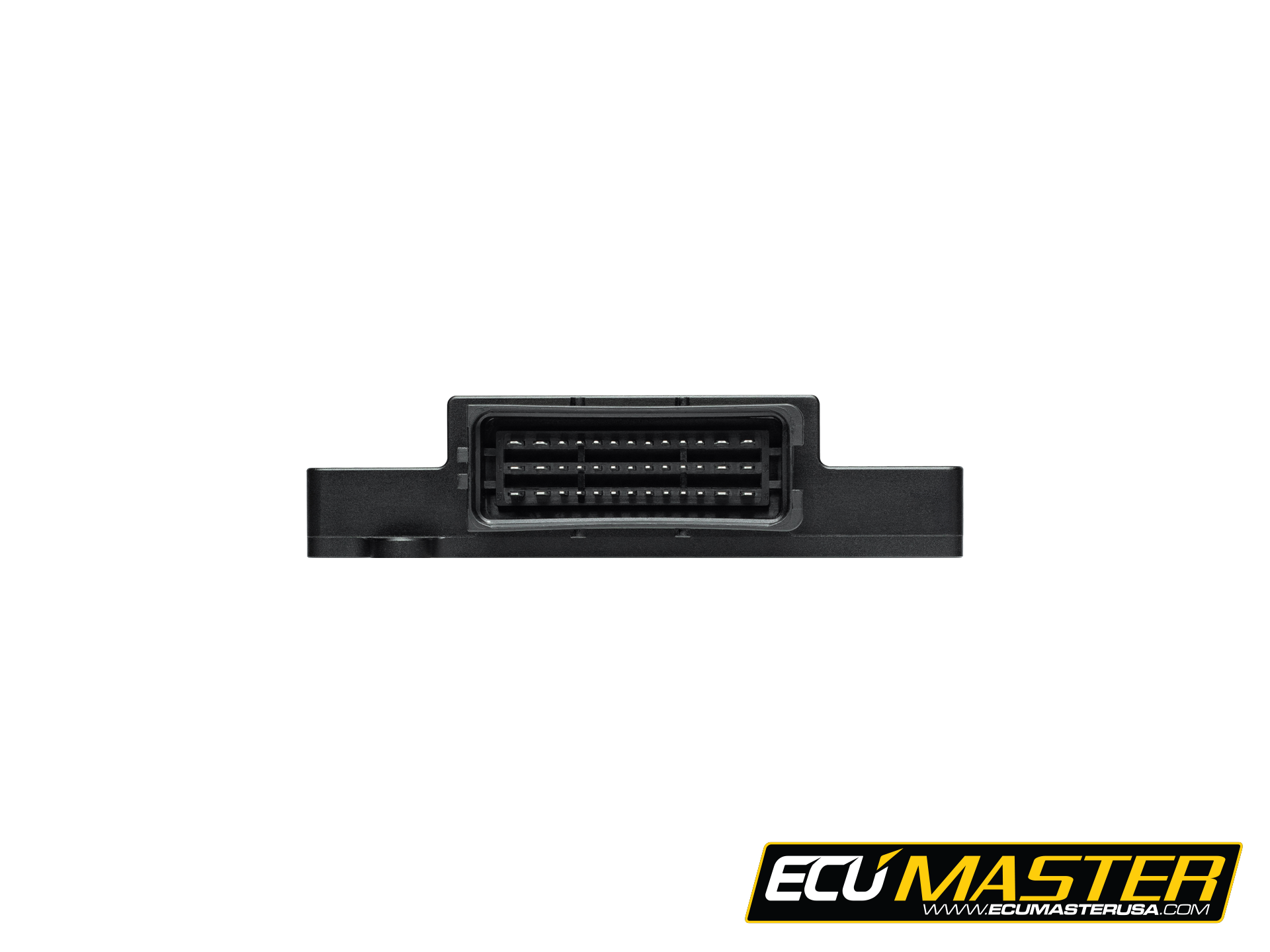

Product image 8ECUMaster PMU-24 DL

Regular price $1,849.00

The PMU-24 DL is a new and enhanced Power Management Unit featuring all of the amazing functionality of the PMU-16, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs may be utilized as 7 amp high side outputs. As standard with the PMU-16 series, all output states, voltage, and current information are able to be transmitted via CAN bus to a dash display to inform the driver of potential problems. In addition, all internally logged data can be downloaded from the device for later analysis.

Key Features

170 Amp continuous current capacity.
Operating voltage: 6-22V (immunity to transients according to ISO 7637)
Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
10x 25 Amp high-side power outputs (PWM capable).
6x 15 Amp high-side power outputs.
8x 7 Amp high-side power outputs.
Up to 16 analog inputs.
24x tricolor LED for each power output state.
2x CAN 2.0 A/B.
256 MB data logger memory.
Up to 500 Hz logging frequency.
Real-time clock for data stamping.
3D accelerometer/gyroscope.
Built-in “inertia switch” in case of an accident.
Easy access to CAN-bus data (imports and exports).
Internal data processing using logical functions, numbers, timers, and tables.
Custom PID controllers.
Fully customizable ”logic” for each output.
Flexible and intuitive client software.

Additional Documents

PMU-24 DL Pinout Simplified

PMU-24 DL Pinout Advanced

PMU User Manual 92.0

PMU Comparison Chart

PMU-24 DL CAD Data

Drawings - PMU-24 DL
