ECUMaster PMU-16 AS
Regular price $2,499.00 USD

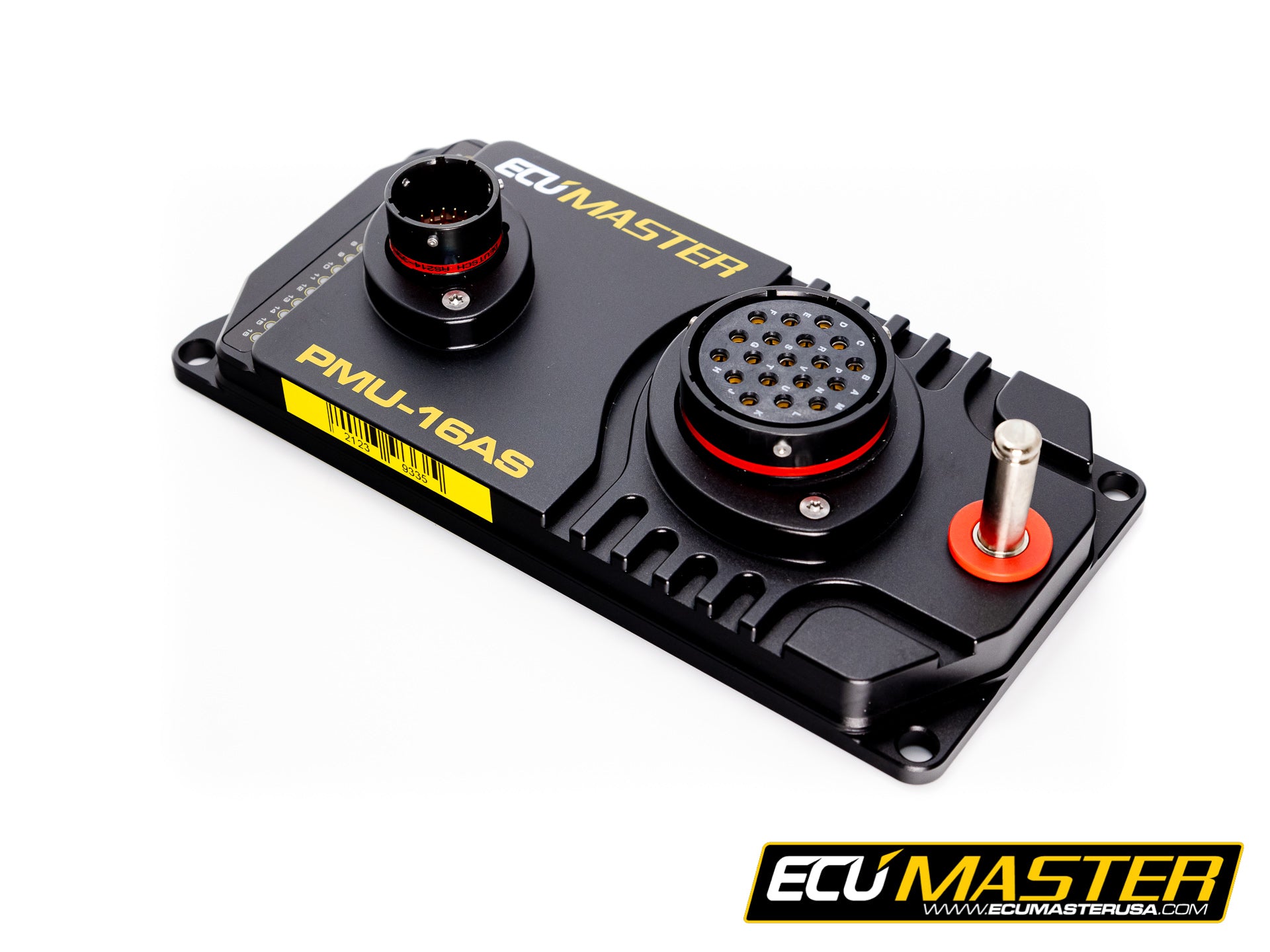

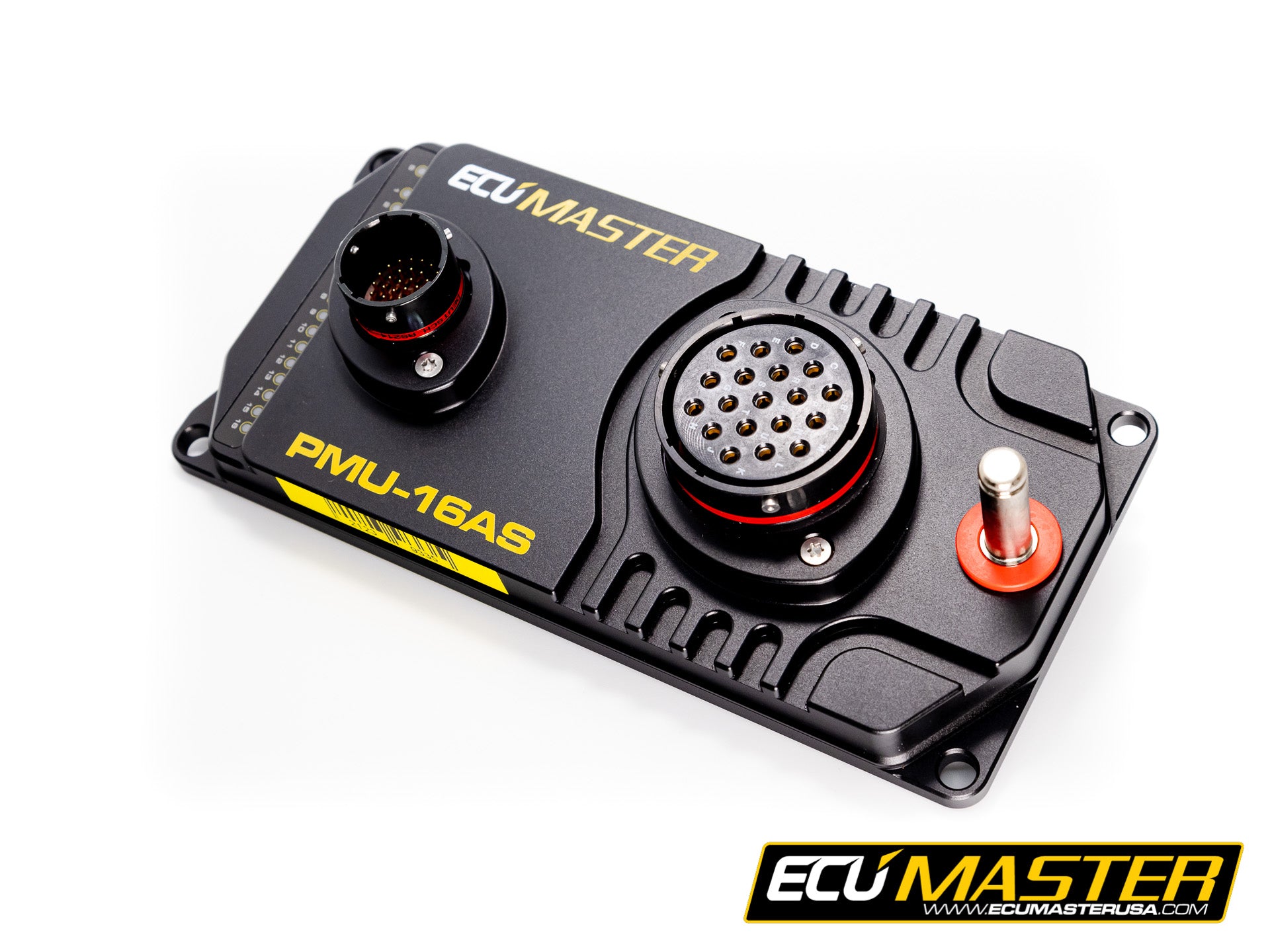

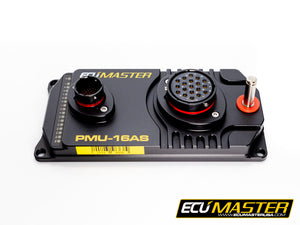

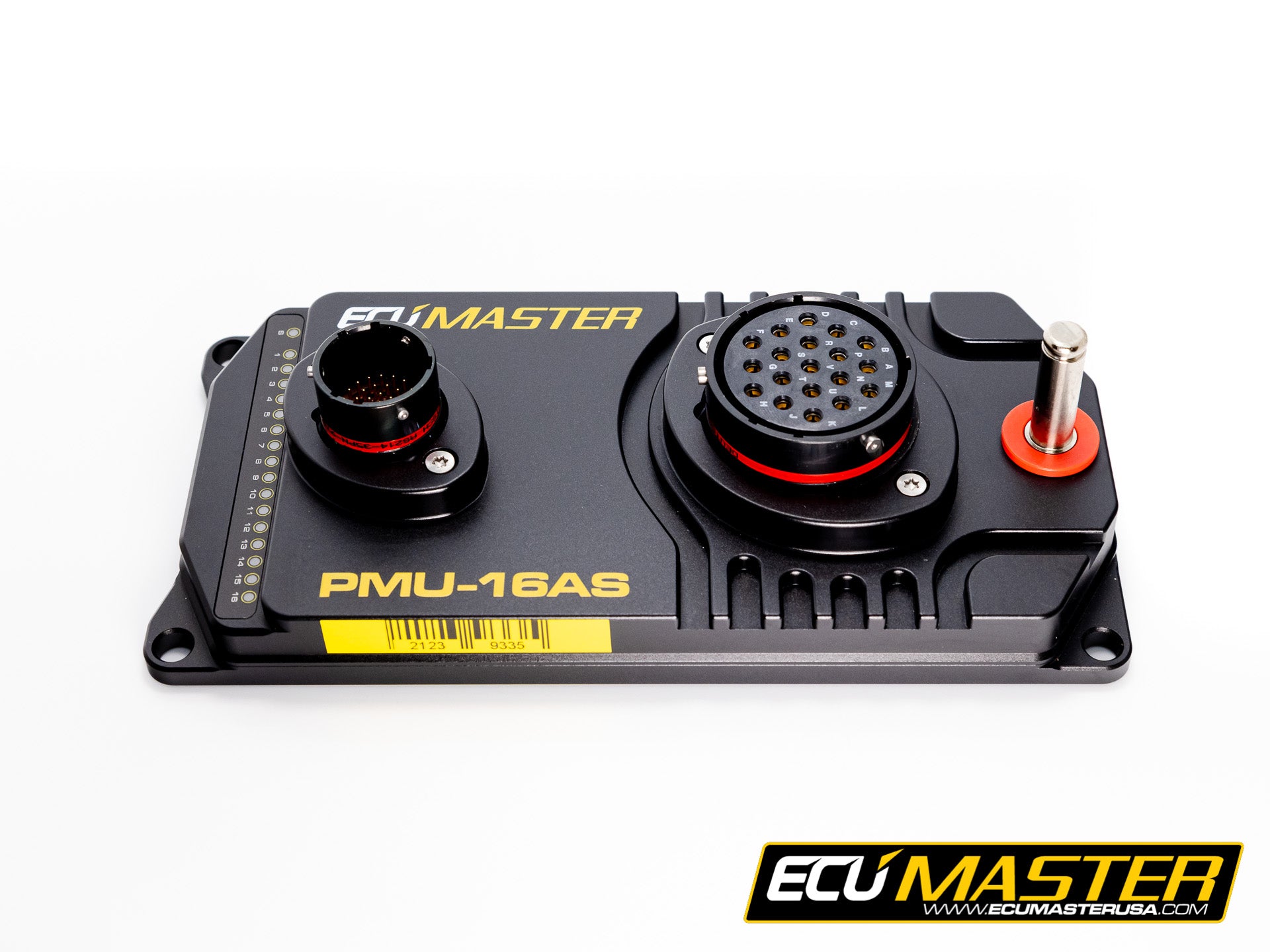

PMU16 Autosport Power Management Unit
The ECUMaster brand has quickly become popular for delivering excellent value and performance. This ethos was noticed by high caliber motorsport customers and OEMs which created a need for motorsport grade products. We would like to introduce the new PMU16 AS, a motorsport grade power distribution module built for the most demanding customers and applications.
The PMU16 Autosport Version is designed for demanding customers
and installations where reliability and robustness are top priorities.
Autosport connectors represent the highest quality connector
available, and are the standard for professional motorsports and
aerospace industries. The battery connection utilizes a RadlokTM
connector rated to 200 amps that can be disconnected without the need
for any tools. The output connector is a custom 18 pin, 12 gauge
connector designed and manufactured specifically for ECUMaster. The
unit features an IP65 environmental protection rating, permitting its
use in the harshest of conditions, including dusty and wet
environments.
Compared to the standard PMU16, 6 low side outputs have been added
and are rated at 1 amp per channel. 14 of the main output channels
are rated at 25 amps, with two output channels rated at 40 amps.
As always with Ecumaster products, mating connectors and terminals
are included at no extra cost, which represents a substantial savings
and saves the hassle of ordering separate components.
Broad CAN Integration:
All PMUs support CAN integration with a wide range of ECUs, PDMs, and other devices. Software downloads include preconfigured CANX templates for many popular manufacturers, including:
- Abit M11 Korvet
- Adaptronic
- AEM
- Bosch Motorsport MS 4 Sport
- DTA S Series
- EFI Technology Euro Series
- Emerald K3/K6
- Emtron
- FuelTech FTCAN 2.0
- GET H4FSAE
- Haltech
- Holley EFI*
- Hondata
- KMS MD35
- Link ECU
- MaxxECU
- MBE Systems
- Megasquirt 2 & 3
- Microtech
- MoTeC M1
- MoTeC M800
- MoTeC M84
- MoTeC MDC/SDC
- MoTeC PDM
- Motorsport Electronics Gen 1 & 2
- Pectel SQ6
- ProEFI
- SCS Delta D800
- Syvecs / Life Racing
- Trijekt
- Vi-PEC
In addition to the included templates, PMU features fully user-configurable CAN communications and support DBC file imports. This allows integration with virtually any CAN-enabled device for which a DBC file or CAN message documentation is available.
*See FAQ, Section 5 for Holley EFI setup notes.

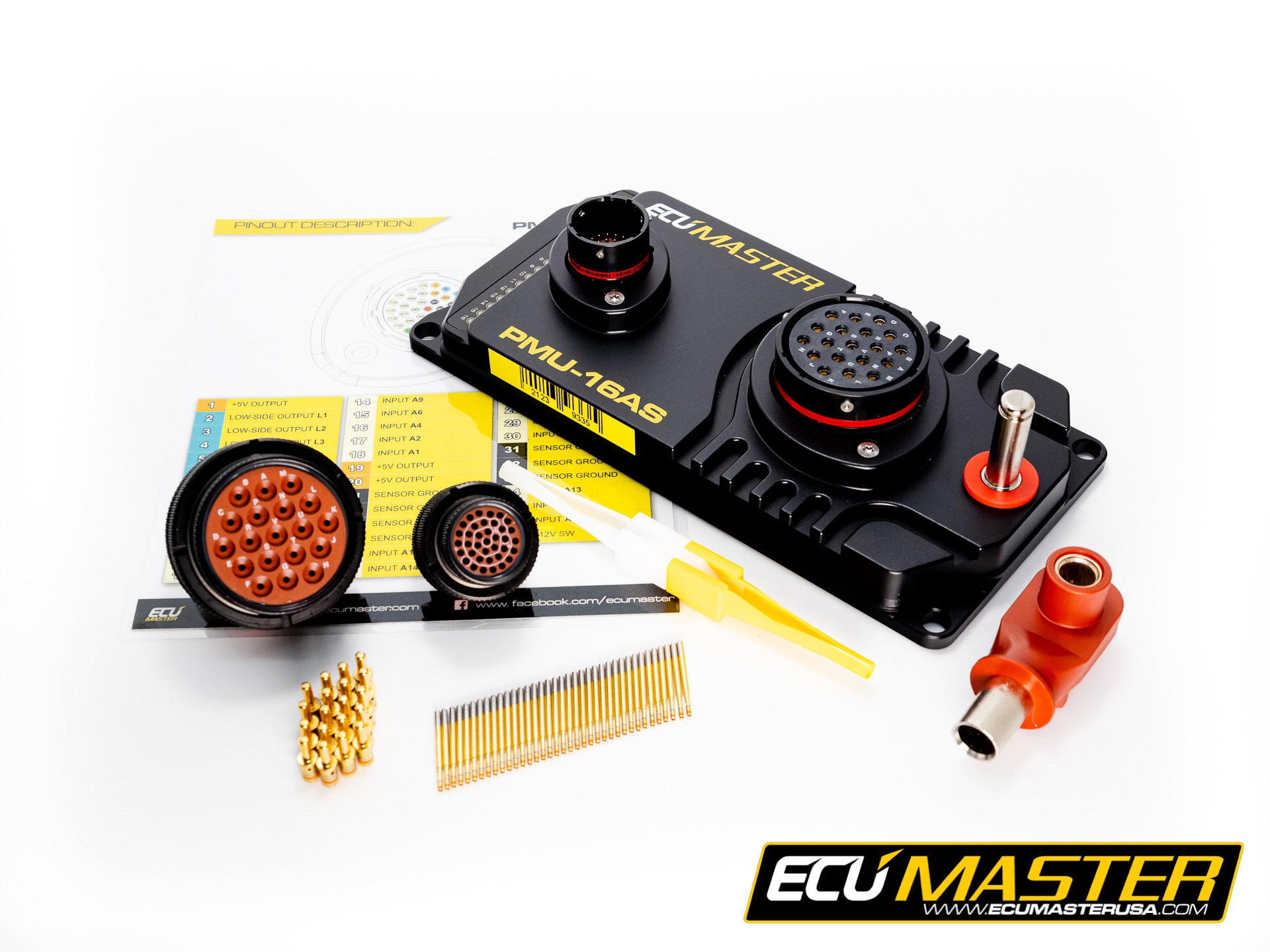

What's in the Box?
- PMU16 AutoSport Device

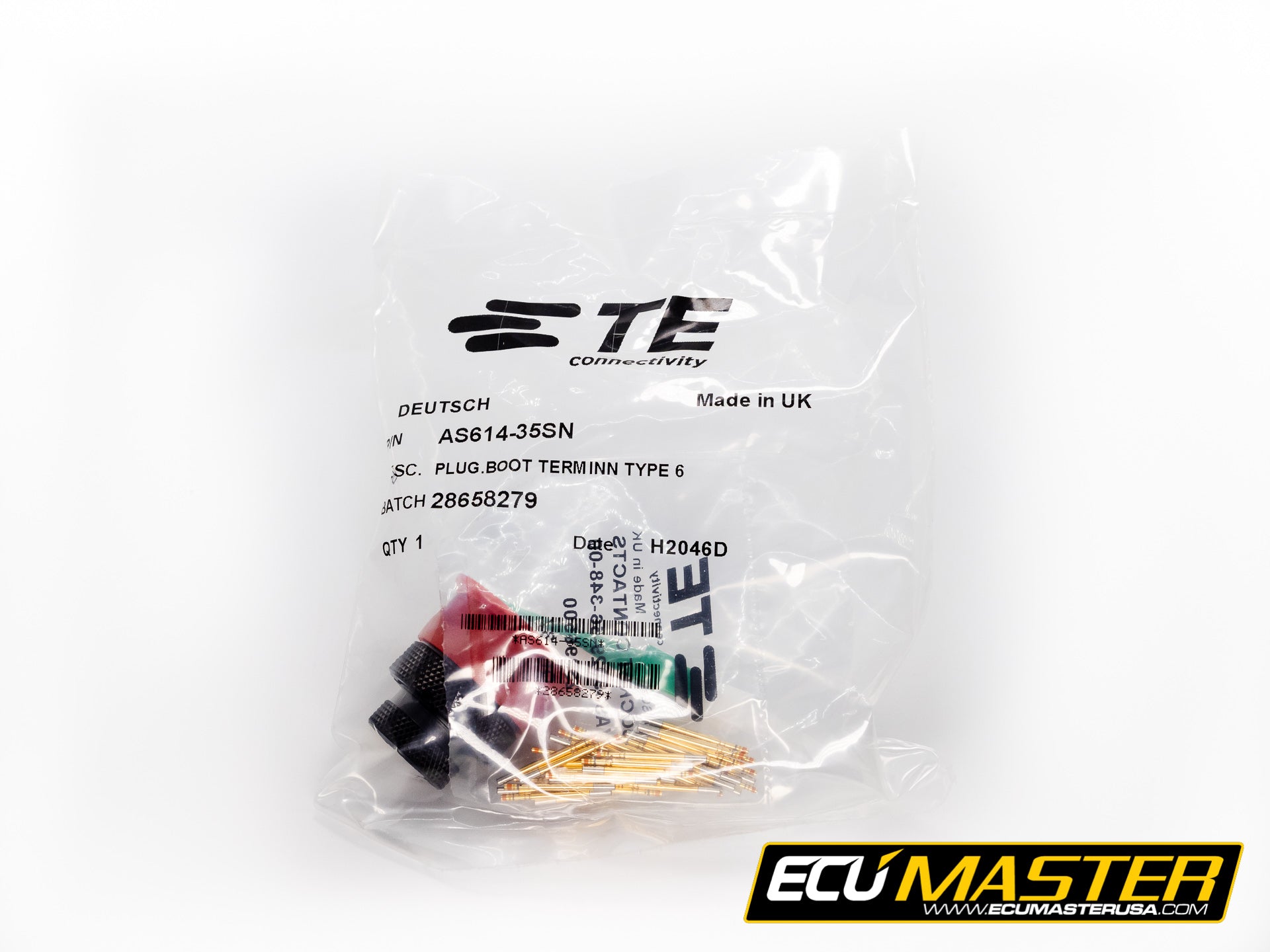

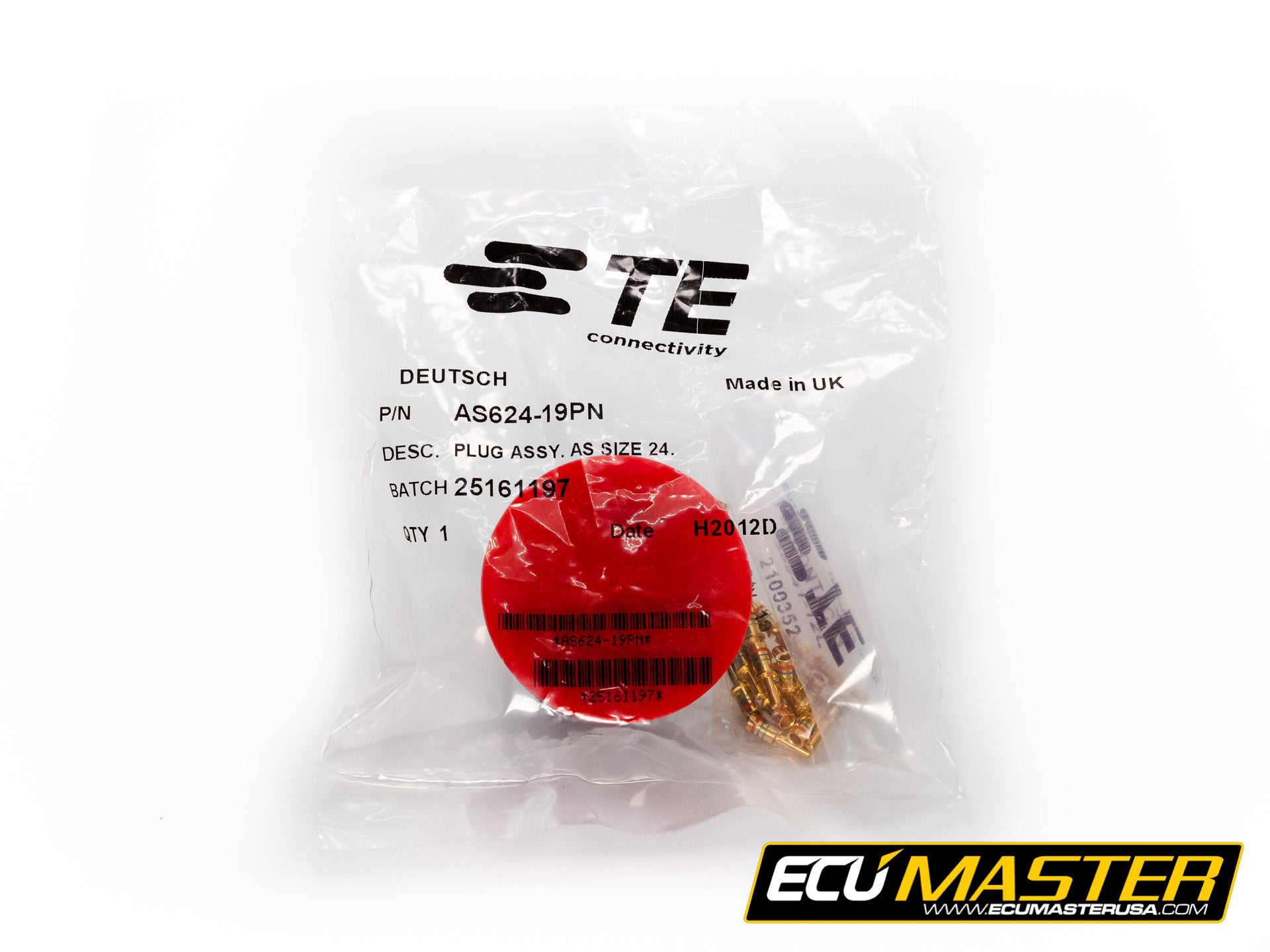

- Two Autosport Connectors with Terminals
- Radlok connector for power input
- Laminated Pinout Card
Recommended Accessories
- USB to CAN Adapter (you may use a Peak PCAN or Kvaser CAN cable, but one of these three USB to CAN interfaces must be used to program the device)
CAN Keyboard (mechanical switches may be connected to any of the 16 analog inputs, but CAN keyboards add functionality to the PMU16)
