12 Position Rotary Switch

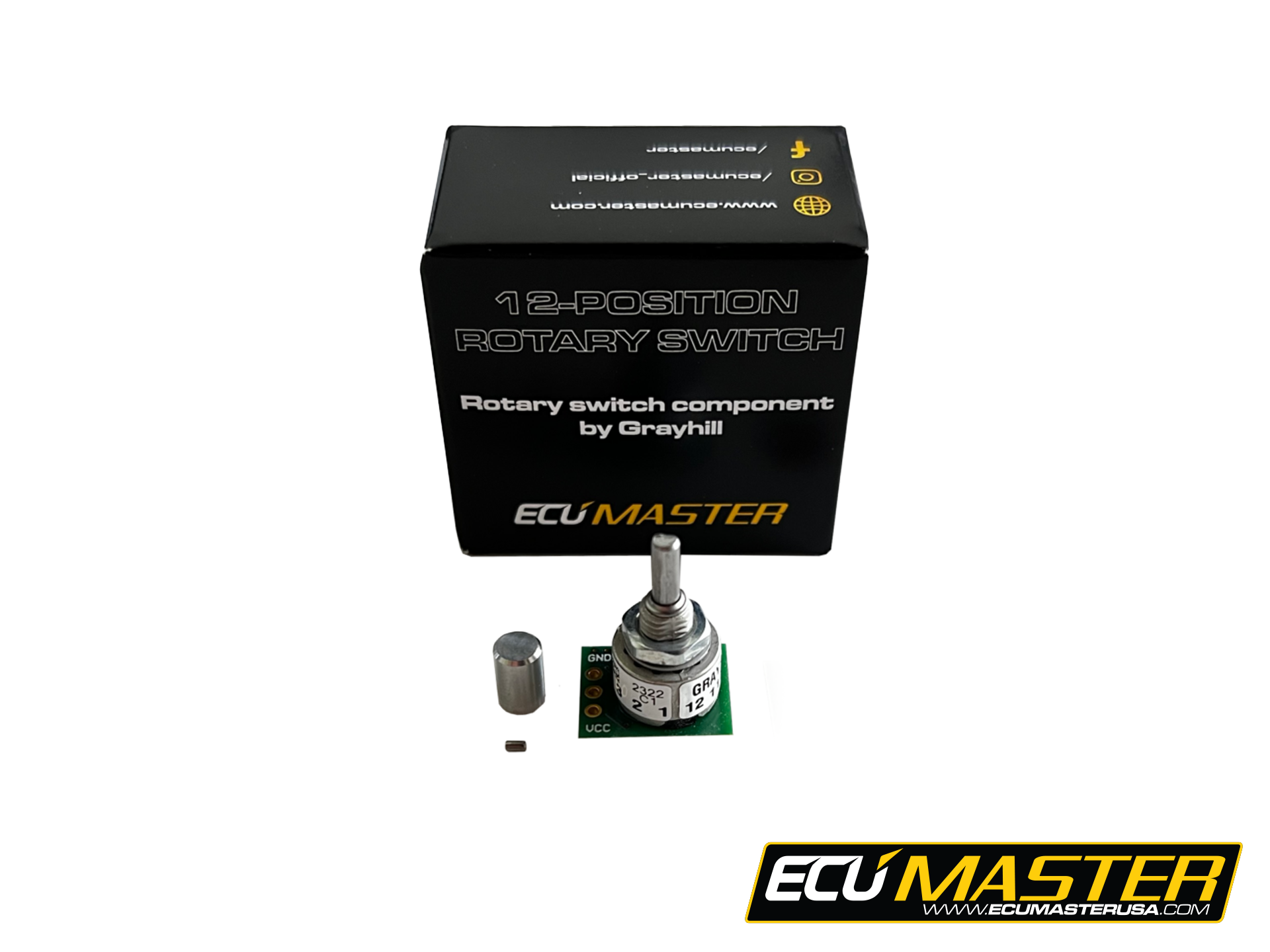

Product image 1

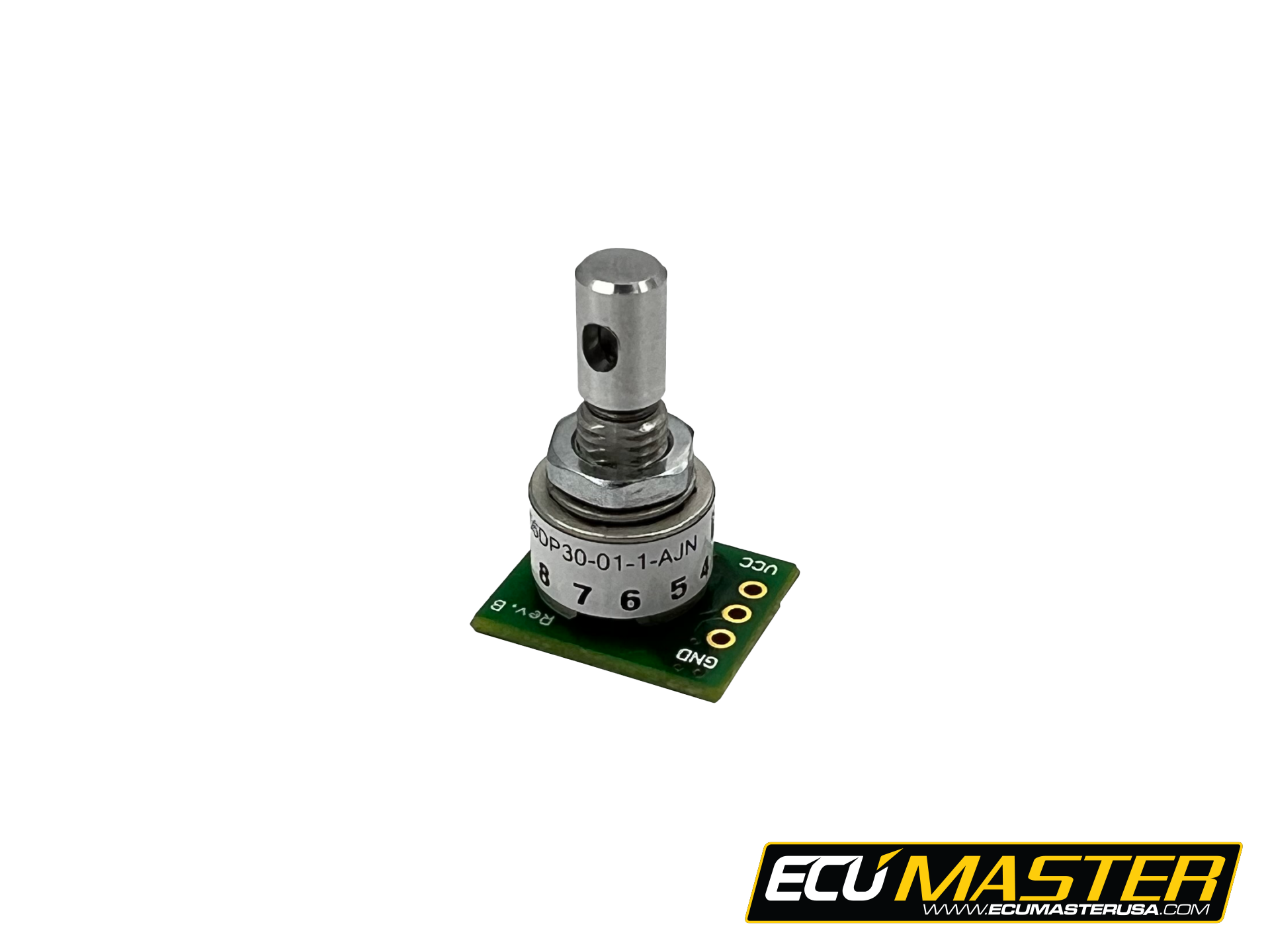

Product image 2

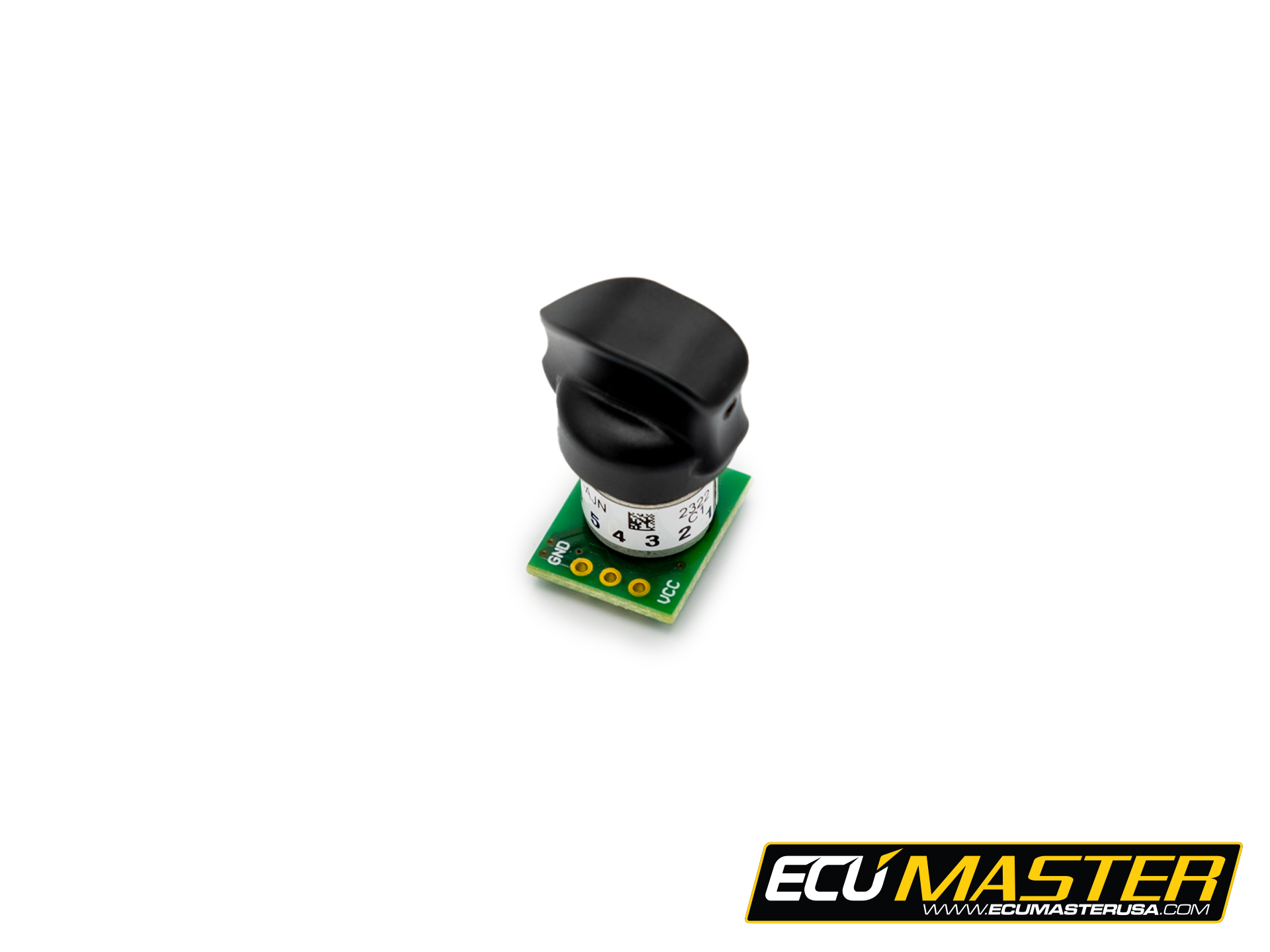

Product image 3

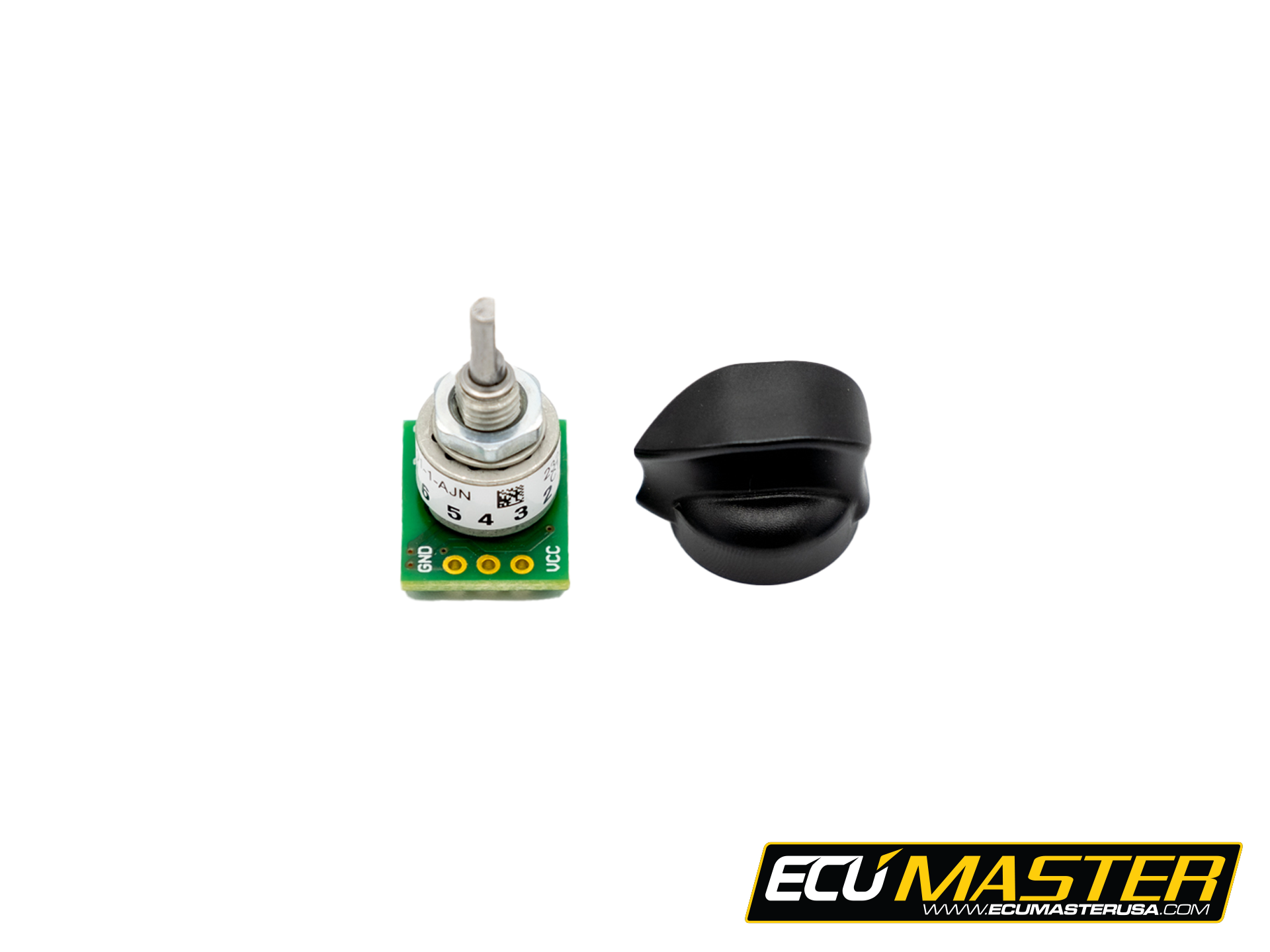

Product image 4
Regular price $99.00
The ECUMaster 12-Position Rotary Switch is an analog switch with adjustable position limiting pins, allowing users to customize it for various applications. It includes a bushing for easy knob mounting.
The switch enables quick mode changes and can control multiple functions. Its universal compatibility makes it suitable for a wide range of uses, connecting seamlessly to any unused analog input on ECUMaster devices such as EMU Classic, EMU Black, EMU Pro and PMUs.
The rotary switch unit, produced by the world-leading Grayhill Inc, is assembled and enhanced by ECUMaster, guaranteeing top-end quality.
Specifications:
- Index Stops - Adjustable
- Number of Positions - 2 - 12
- Number of Decks - 1
- Number of Poles per Deck - 1
- Index Angle - 30º
- Maximum Current Rating - 200mA
- Voltage Rating DC - 30V
- Dimensions - 15.5mm x 19mm x 29mm
